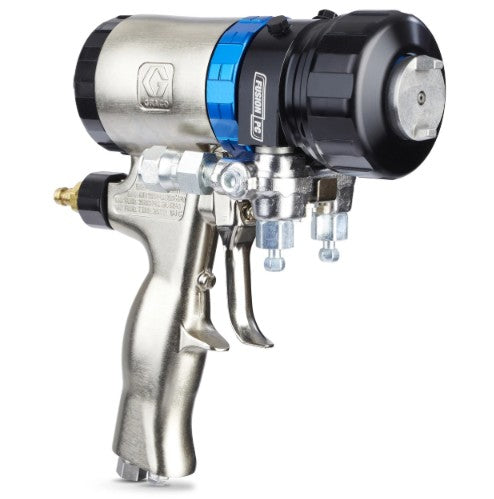

A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime. This gun can be combined with any Fusion PC mix chamber.

Features:

• A single cartridge replaces the entire fluid section in seconds
• Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP
• Integrated check valves for cross-over containment
• 13 parts are replaced by a single ProConnect cartridge
• Eliminates the need to purchase fluid section O-rings
• Spare ProConnect cartridges can replace your back-up guns
• Retrofit Kit available to convert existing Fusion AP guns

Operational Specifications:

• Height: 6.625 inches
• Length: 11.75 inches
• Width: 12.25 inches
• Volume: 0.552 ft³

Technical Specifications:

• Air Inlet Size: 1/4 inches
• Air Inlet Thread Type: NPT
• Applicator Type: Manual
• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
• Component A Inlet Size: 1/2-20 inches
• Component A Inlet Thread Type: UNF
• Component B Inlet Size: 9/16-18 inches
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component
• Fluid Orifice Size: 0.042 inches
• For Use With: Non-Flammable Foam and Polyurea
• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air Purge Gun
• Gun Weight: 2.95 lbs.
• Maximum Air Inlet Pressure: 0.9 MPa
• Maximum Air Inlet Pressure: 130 PSI
• Maximum Air Pressure: 0.9 MPa
• Maximum Air Pressure: 130 PSI
• Maximum Flow Rate @ PSI: 50 lbs/min
• Maximum Fluid Pressure: 24.1 MPa
• Maximum Fluid Pressure: 3500 PSI
• Maximum Fluid Temperature: 200 °F
• Maximum Fluid Working Pressure: 24.5 MPa
• Maximum Fluid Working Pressure: 3500 PSI
• Minimum Air Inlet Pressure: 0.55 MPa
• Minimum Air Inlet Pressure: 80 PSI
• Mix Chamber: No Mix Chamber
• Model: Fusion PC
• Overall Height: 8.1 inches
• Overall Length: 8 inches
• Overall Width: 3.3 inches
• Product Type: Spray Gun
• Purge Method: Air
• Series: Round
• Sound Power Level: 91 dB(A)
• Sound Pressure Level: 81.1 dB(A)
• Spray Gun Mix Type: Impingement
• Spray Pattern: Round
• Trigger Lock: Locking
• Trigger Type: Two-Finger
• Wetted Parts: Aluminum, Stainless Steel, Carbon Steel, Carbide, Chemically Resistant O-Rings
