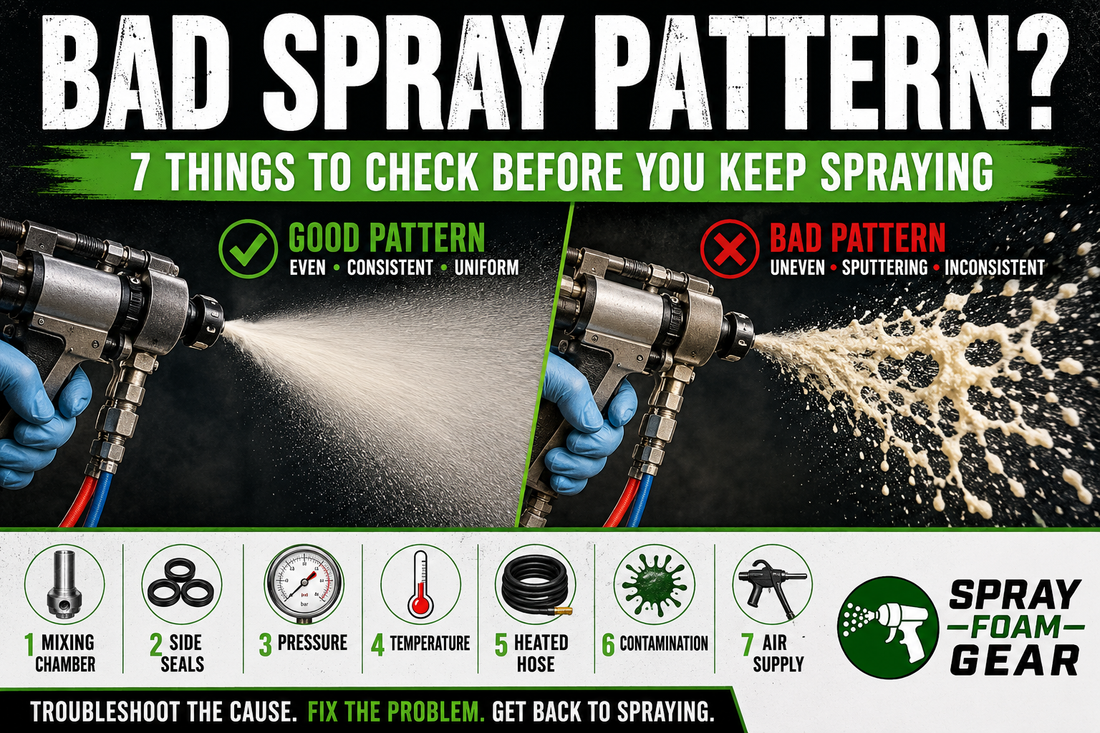

What Causes a Bad Spray Foam Pattern? 7 Things Contractors Should Check
Share
A spray foam gun should produce a consistent, even spray pattern. When that pattern suddenly becomes uneven, narrow, sputtering, or heavier on one side, something isn't right.
The good news is that a poor spray pattern doesn't necessarily mean you have a major equipment failure.
Often, the cause is something relatively simple: a dirty mixing chamber, worn components, restricted material flow, incorrect temperatures, pressure imbalance, or contamination.
Before replacing expensive equipment—or continuing to spray questionable foam—here are seven things every spray foam contractor should check.
1. Check the Mixing Chamber
The mixing chamber is one of the first places to investigate when a spray pattern changes.
Material buildup or partially restricted openings can interfere with the way the A-side and B-side materials mix and exit the gun.
A restricted mixing chamber can contribute to:
- Uneven spray patterns
- Reduced output
- Material favoring one side
- Poor atomization
- Inconsistent foam application
Regular inspection and cleaning of your spray gun can help prevent a minor buildup problem from turning into expensive downtime.
Contractors using Fusion equipment should also keep commonly needed spray gun replacement parts available so worn components can be replaced without losing an entire workday.
2. Inspect Side Seals, O-Rings and Other Wear Parts
Spray guns operate under demanding conditions, and seals and O-rings don't last forever.
Worn, damaged, or contaminated components can affect material flow and contribute to poor gun performance.
Inspect these components for signs of:
- Cuts or cracking
- Flattening
- Swelling
- Chemical damage
- Excessive wear
- Material buildup
Keeping the correct replacement parts available can turn an unexpected problem into a quick field repair.
👉 Shop Spray Foam Gear O-Rings:
https://sprayfoamgear.com/collections/o-rings-1
This is also why we recommend keeping a small collection of commonly needed parts in your rig. Our guide, 7 Spare Parts Every Spray Foam Contractor Should Keep on the Truck, explains what should be included in a basic field repair kit.
3. Check Your A-Side and B-Side Pressures
Spray foam depends on the A-side and B-side materials being delivered to the gun properly.
If the pressures aren't behaving normally, don't automatically compensate by increasing pressure.
A significant pressure imbalance can indicate a restriction or another problem somewhere in the system.
Look at the entire material path and determine why the pressures are different before continuing to spray.
A pressure problem isn't something you want to ignore simply because foam is still coming out of the gun.
4. Verify Material Temperatures
Temperature plays an important role in spray foam application.
Your proportioner and heated hose work together to maintain the appropriate material temperature as the chemicals travel toward the spray gun.
If material temperatures aren't where they should be, viscosity changes—and spray characteristics can change along with it.
Always verify your equipment settings against the recommendations provided by the foam manufacturer you're spraying.
The heated hose itself also plays an important role in maintaining consistent temperatures.
👉 Shop Handcrafted Hose Co. Heated Hoses:
https://sprayfoamgear.com/collections/handcrafted-hose-co
5. Inspect the Heated Hose
Sometimes a problem that appears to originate at the spray gun actually begins much farther upstream.
Inspect your heated hose regularly for:
- Cuts or abrasion
- Kinks
- Crushed sections
- Loose fittings
- Material leakage
- Damaged electrical connections
- Heating problems
A properly functioning heated hose helps maintain consistent material delivery from the proportioner all the way to the spray gun.
This is one reason a quick equipment inspection before starting a job can be so valuable.
Our 5-Minute Equipment Check Before Every Job walks through the major areas contractors should inspect before that first trigger pull.
6. Look for Moisture and Contamination
Dirt, cured material, moisture, and other contaminants can create problems throughout a spray foam system.
Keep fittings capped whenever they're disconnected and maintain a clean work area when servicing equipment.
Pay particular attention to:
- Spray gun components
- Hose connections
- Transfer equipment
- Air systems
- Chemical containers
- Desiccant cartridges
Moisture deserves special attention because isocyanate reacts readily with water. Keeping moisture away from the material and equipment is an important part of maintaining a reliable spray system.
We covered this subject in detail in Why Moisture Is the Silent Killer of Spray Foam Equipment.
Sometimes the smallest contaminant can create a surprisingly large equipment problem.
7. Don't Forget the Simple Stuff
Before tearing apart your entire spray system, start with the basics.
Ask yourself:
Is the spray gun clean?
Are the connections tight?
Is the air supply correct?
Are filters or screens restricted?
Has the equipment reached operating temperature?
Are A-side and B-side pressures behaving normally?
Is the mixing chamber clean?
Are seals and O-rings in good condition?
Experienced technicians typically troubleshoot systematically, beginning with the simple possibilities before assuming an expensive component has failed.
A Bad Spray Pattern Is a Warning
An abnormal spray pattern shouldn't simply be ignored.
Poorly proportioned or improperly applied foam can potentially lead to wasted material, additional labor, callbacks, and unhappy customers.
If the spray pattern suddenly changes, stop and determine why before continuing.
A few minutes spent troubleshooting can be considerably less expensive than spraying material that later needs to be removed or repaired.
And having the right replacement parts available makes troubleshooting much easier.
That's why we recommend reading 7 Spare Parts Every Spray Foam Contractor Should Keep on the Truck and building a small dedicated repair kit for your rig.
Don't Forget PPE While Troubleshooting
Troubleshooting doesn't mean PPE requirements disappear.
Technicians may still encounter chemical residue, pressurized components, cleaning materials, and other hazards while servicing spray foam equipment.
Proper respiratory protection, gloves, protective clothing, and other PPE should be selected for the task being performed and according to applicable safety requirements.
👉 Shop Spray Foam PPE:
https://sprayfoamgear.com/collections/ppe
For more information about respiratory protection, read our guides on Why Every Spray Foam Contractor Needs a Full-Face Respirator and Supplied-Air Respirators vs. Air-Purifying Respirators: What's the Difference?
Final Thoughts
A consistent spray pattern is one of the clearest indications that your spray foam system is operating properly.
Your spray gun, mixing chamber, seals, O-rings, heated hose, proportioner, air supply, and material-delivery system all work together.
When the pattern changes, don't immediately assume the most expensive component has failed.
Start with the basics. Inspect the gun. Check pressures and temperatures. Examine the heated hose. Look for restrictions, worn components, moisture, and contamination.
Most importantly, develop a consistent troubleshooting process.
